| Place of Origin: | Qingdao, China |
| Brand Name: | Compass |
| Certification: | ISO 9001, SGS |
| Model Number: | 622 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bag + Box + Carton + Pallet |
| Delivery Time: | 30-45days according to quantity |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 10000pcs per month |
| Product: | Stainless Steel Wall Mounted Bracket | Base Plate: | 100*6 |
|---|---|---|---|
| Tubes: | 33.7-50.8mm | Material: | V2A, V4A |
| Type: | Wall Mounted | Lead Time: | 35-45days |
| Highlight: | stainless steel rail fittings,stainless steel balustrade fittings |
||

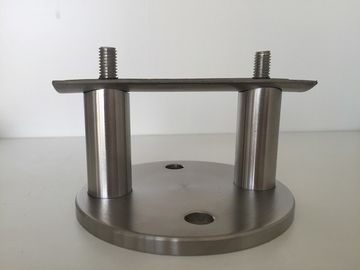

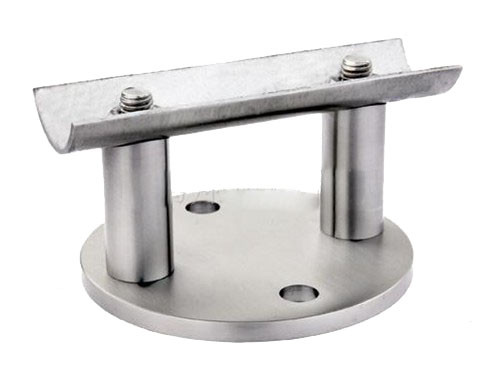

Wall Mounted Bracket Mainly Work for Stainless Steel Railing Balusters
Available dimensions.
| Item NO. | Base(mm) | φtube(mm) |
| 622.337 | 100*6 | 33.7 |
| 622.381 | 100*6 | 38.1 |
| 622.424 | 100*6 | 42.4 |
| 622.483 | 100*6 | 48.3 |
| 622.508 | 100*6 | 50.8 |
Our Railing systems allow you to install high quality, sleek railing in a fraction of the time traditional systems require. This means quicker installation, less labor and cost savings. With the use of the system’s bonding agent, it’s no longer necessary to weld connections resulting in a cleaner look. Round system components come in type 304 and 316 stainless steel.
Features.
1. The base is 100*16mm
2. Height from wall to the tube is 51mm or customized.
3. 33.7mm, 38.1mm, 42.4mm, 48.3mm or 50.8mm one are all availabe
4. Material is SS304 indoor or SS316 outdoor.
5. Surface could be brushed or polished according to needs.
6. Production time needs 30-40days according to order quantity.
7. Packing: bag + inner box + carton + pallet.
8. Deliver term : FOB, CIF, CFR, DDU, DDP.
9. Payment term: T/T30% as deposit, 70% payed according to Bill of Lading.
10. Departure port: Qingdao or according to needs.
General terms.
- Lead time: 30-50days according to order quantities.
- Payment term: T/T 30% deposit, 70% balance payed according to the documents copy.
- Departure port: Qingdao or other ports according to needs.
- Delivery term : by sea, by air, by Express
