| Place of Origin: | Qingdao, China |
| Brand Name: | Compass |
| Certification: | DIN |
| Model Number: | C101 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + plywood pallet |
| Delivery Time: | 30-40days according to quantity |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 10000pcs per month |
| Name: | Galvanized Short-T Through Pipe Clamp Fittings | Material: | Malleable Iron By Standard ASTM A197 |
|---|---|---|---|
| Surface: | Hot DIP Galvanized, Black, Powder Coated | Size Available: | T-E(21.3-60.3mm) |
| Screw: | Stainless Steel | Color: | Silver |
| Highlight: | iron pipe fittings,iron pipe connectors |
||

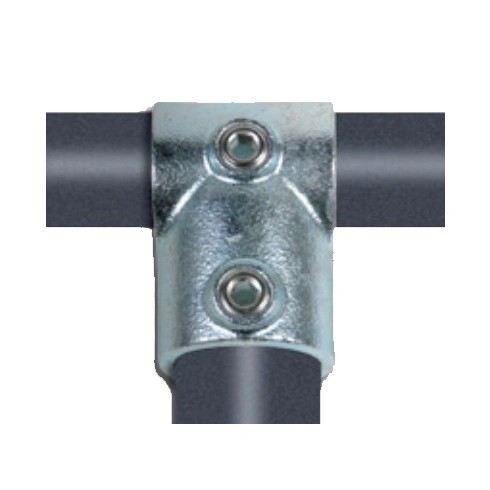

Malleable Iron Hot Dip Galvanized 3 Way Through Pipe Clamp Fittings
Material
Compass pipe clamps are designed by using malleable iron in accordance with ASTM A197 which applies for good mechanical strength and enough elongation characters. The surface treatment of the clamps is hot dipped galvanized which meet the specification of ASTM A153 to anti-rusting and corrosion, the surface can also be Black or Powder Coated according to needs.
FAQ
Q1. You are manufacturer or trading company?
A: We are an industrial and trade integration company.
Q2. Can I have a sample before orders?
A: Yes, we welcome sample order to test and check our quality.
Q3. What about the lead time of sample order?
A: Standard parts need 3-5 days after sample order confirmed.
Q4. How can I get your quoted price?
A: If you need our standard parts, please let us know the detail item code and order quantity, then the quotation will be sent. OEM parts please provide the drawing at the same time
Available dimensions
Six different sizes are available as following.
| Pipe Clamp Size | Nominal Bore | Outside Diameter |
| T | 1/2'' | 21.3mm |
| A | 3/4'' | 26.9mm |
| B | 1'' | 33.7mm |
| C | 1-1/4'' | 42.4mm |
| D | 1-1/2'' | 48.3mm |
| E | 2'' | 60.3mm |
| Item NO. | Weight( KG/pc) | Surface | Carton sizes |
| C101-A | 0.19 | black, hot galvanizing, electrogalvanizing | 340*260*240mm |
| C101-B | 0.30 | black, hot galvanizing, electrogalvanizing | 340*260*240mm |
| C101-C | 0.46 | black, hot galvanizing, electrogalvanizing | 340*260*240mm |
| C101-CB | 0.38 | black, hot galvanizing, electrogalvanizing | 340*260*240mm |
| C101-CD | 0.54 | black, hot galvanizing, electrogalvanizing | 340*260*240mm |
| C101-D | 0.53 | black, hot galvanizing, electrogalvanizing | 340*260*240mm |
| C101-EC | 0.47 | black, hot galvanizing, electrogalvanizing | 340*260*240mm |
| C101-E | 0.85 | black, hot galvanizing, electrogalvanizing | 340*260*240mm |
| C101-ED | 0.64 | black, hot galvanizing, electrogalvanizing | 340*260*240mm |
| C101-T | 0.14 | black, hot galvanizing, electrogalvanizing | 340*260*240mm |
Specifications
| Material | Malleable Iron by Standard ASTM A197 |
| Screw | Stainless Steel |
| Tensile Strength | ≥350MPa |
| Elongation | ≥10% |
| Hardness | HB≤150 |
| Size Available | T-E(21.3-60.3mm) |
