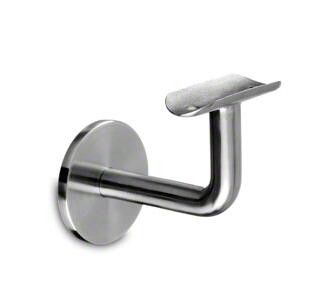

Stainless Steel Banister Handrail Bracket, Wall Mount with Concealed Fastener

This Stainless Steel Banister Handrail Bracket, Wall Mount with Concealed Fastener is widely used as pipe support in stainless steel handrails for balcony, staircases, fence, deck railings according to different environment, no matter interior or exterior installation with material AISI304 or AISI316. Customized dimensions are welcomed too.

Sizes.

Features.

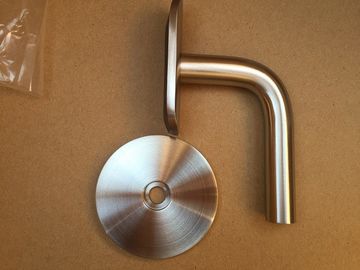

The top saddle could be flat for square pipes, or round for 33.7, 38.1, 42.4, 48.3, 50.8mm tubes. Base plate is 60*5mm, and the rod is in 14mm(70*50), the bottom thread is M6 for screwed to the wall or wood. General material is SS304 indoor or SS316 outdoor. Surface could be brushed or polished according to needs.The production time needs 30-40days according to order quantity. General packing is bag + inner box + carton + pallet. Our payment term: T/T30% as deposit, 70% payed according to Bill of Lading. Customized dimensions are welcomed too.

Material Standard(%)．

AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00

AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

Products available.

- Stainless Steel Railing Systems
- Frameless Glass Railing System(glass spigot,glass standoff, Aluminum U channel)
- Slot tube/ Channel tube system
- Balustrade & Handrail Accessories
- Malleable iron pipe key clamps
- Carbon Steel galvanized parts(kick plate clamps, self-closing gate hinge, splice locks, fixing clips)
- Shower / bathroom fittings
- Laminated tempered glass could be supplied if needed
