| Place of Origin: | Qingdao, China |
| Brand Name: | Compass |
| Certification: | ISO 9001, SGS |
| Model Number: | 531 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bag + Box + Carton + Pallet |
| Delivery Time: | 30-40days according to quantity |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 10000pcs per month |
| Product: | Wall Mount Pipe Support | Application: | Welding Pipe Support |
|---|---|---|---|
| Rod: | 12mm, 14mm | Base: | 70*4mm, 70*5mm, 70*6mm |
| Height: | 75mm Or Customized | Lead Time: | 30-40days |
| Highlight: | stainless steel rail fittings,stainless steel balustrade fittings |
||

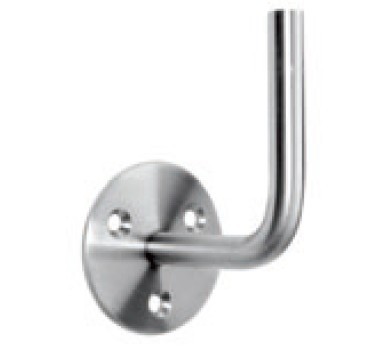

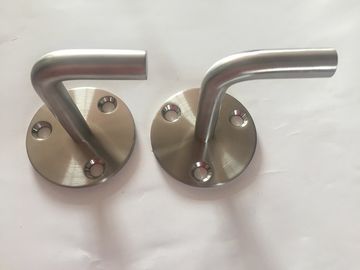

Stainless Steel Staircase Railing Components, Wall Mount Pipe Support
Available sizes.
| Item NO. | Base plate | Thickness of Base | Height | Rod | Head or rod |
| 531.12 | 70mm | 6mm or customize | 75mm | 12mm | flat for welding |
| 531.12.M6 | 70mm | 6mm or customized | 75mm | 12mm | M6 screwed |
| 531.14 | 70mm | 6mm or customized | 75mm | 14mm | flat for welding |
| 531.14.M6 | 70mm | 6mm or customized | 75mm | 14mm | M6 screwed |
Features.
1. Base plate could be 70*4mm, 70*5mm, 70*6mm or customized according to needs.
2. Height is 75mm or customized.
3. The head of the rod is flat for welding or M6 screwed to the top handrails.
4. The diameter of rod could be 12mm or 14mm.
5. There're 3 countersunk holes on the base for fixing.
6. Material is SS304 indoor or SS316 outdoor.
7. Surface could be brushed or polished according to needs.
8. Production time needs 30-40days according to order quantity.
9. Packing: bag + inner box + carton + pallet.
10. Deliver term : FOB, CIF, CFR, DDU, DDP.
11. Payment term: T/T30% as deposit, 70% payed according to Bill of Lading.
12. Departure port: Qingdao or according to needs.
Material
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| AISI304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.-10.0 | 18.0-20.0 | |
| AISI316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| AISI316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
Advantages of Compass.
1. One-stop supplier
With professional casting production lines and machining lines, the whole series of stainless steel railing system can be supplied
2. Destination service.
DDU/DAP service could also be supplied according to needs, then the goods can be delivered to your address directly.
3. Steady and fast delivery time
With strickt controlling system according ISO9001, steady delivery time can be confirmed.
Casting ones need 35-40days.
Machining ones need 20-35days.
Tubes and rubbers need 20days
4. Low MOQ.
As usual, it’s 100pcs per type. But welcome your trial order with lower quantity to check quality first.
5. OEM & ODM
With professional technical team, new designs and customnized parts are welcomed.
6. Free samples are available for checking.
