| Place of Origin: | Qingdao, China |
| Brand Name: | Compass |
| Certification: | DIN |
| Model Number: | C104 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + plywood pallet |
| Delivery Time: | 30-40days according to quantity |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 10000pcs per month |
| Name: | Galvanized 3 Way Through Pipe Clamp Fittings | Material: | Malleable Iron By Standard ASTM A197 |
|---|---|---|---|
| Surface: | Hot DIP Galvanized, Black, Powder Coated | Size Available: | T-E(21.3-60.3mm) |
| Color: | Silver, Black Or According To Needs | Lead Time: | 35days |
| Highlight: | iron pipe fittings,iron pipe connectors |
||

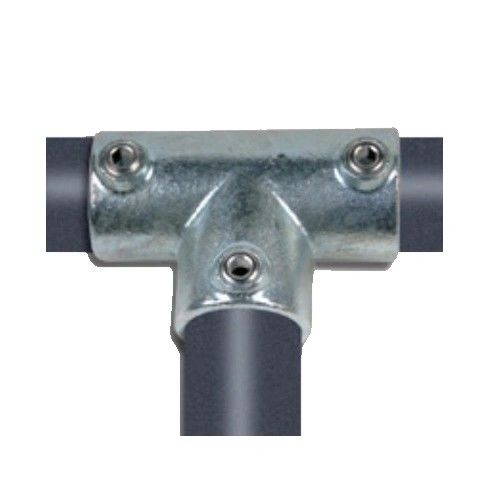

Malleable Hot Dip Galvanized Long-T Through Iron Pipe Clamp Fittings
Material
Compass pipe clamps are designed by using malleable iron in accordance with ASTM A197 which applies for good mechanical strength and enough elongation characters. The surface treatment of the clamps is hot dipped galvanized which meet the specification of ASTM A153 to anti-rusting and corrosion, the surface can also be Black or Powder Coated according to needs.
What can Compass do for you?
General terms.
- Lead time: 30-50days according to order quantities.
- Payment term: T/T 30% deposit, 70% balance payed according to the documents copy.
- Departure port: Qingdao or other ports according to needs.
- Delivery term : by sea, by air, by Express
Available dimensions
Six different sizes are available as following.
| Pipe Clamp Size | Nominal Bore | Outside Diameter |
| T | 1/2'' | 21.3mm |
| A | 3/4'' | 26.9mm |
| B | 1'' | 33.7mm |
| C | 1-1/4'' | 42.4mm |
| D | 1-1/2'' | 48.3mm |
| E | 2'' | 60.3mm |
| Item NO. | Weight( KG/pc) | Surface | Carton sizes |
| C104-A | 0.32 | black, hot galvanizing, electrogalvaning | 340*260*240mm |
| C104-B | 0.49 | black, hot galvanizing, electrogalvanizing | 340*260*240mm |
| C104-C | 0.79 | black, hot galvanizing, electrogalvanizing | 340*260*240mm |
| C104-D | 0.93 | black, hot galvanizing, electrogalvanizing | 340*260*240mm |
| C104-E | 1.51 | black, hot galvanizing, electrogalvanizing | 340*260*240mm |
Specifications
| Material | Malleable Iron by Standard ASTM A197 |
| Surface | Hot galvanized, electrogalvanizing, power coated, black |
| Screw | Stainless Steel |
| Tensile Strength | ≥350MPa |
| Elongation | ≥10% |
| Hardness | HB≤150 |
| Size Available | T-E(21.3-60.3mm) |
